The Perfect Modern OpenAPI Workflow

By Phil Sturgeon
Last update on March 04, 2025

For decades designing and building APIs felt incredibly repetitive, because the whole job seemed to be repeating the “I” in API (Interface) over and over again in various formats. Every APIs would define all the endpoints, properties, data types, values, and validation rules, in all the following places and more:

The whole job was just repeating “Yes, the /trips endpoint returns Trips and they have these properties in this format” until you went blue in the face, and any effort to automate this was converting infinite tricky formats into other tricky formats, with often outdated tooling and a whole lot of duct tape.

Modern OpenAPI To the Rescue #

The HTTP API ecosystem has been revolutionized by OpenAPI, and the countless tooling vendors who have stepped in to making amazing quality interoperable tooling around it. Some people still seem to think OpenAPI is just about API documentation, but as more and more tooling appeared OpenAPI has clearly defined its time and cost savings throughout the API design and development process and beyond.

OpenAPI is a machine readable declaration of the API interface, also known as an API contract. This single source of truth is helpful the whole way through the API lifecycle, from design to deployment to deprecation, and if it just so happens that format is really good at outputting as API documentation then that’s not a bad thing.

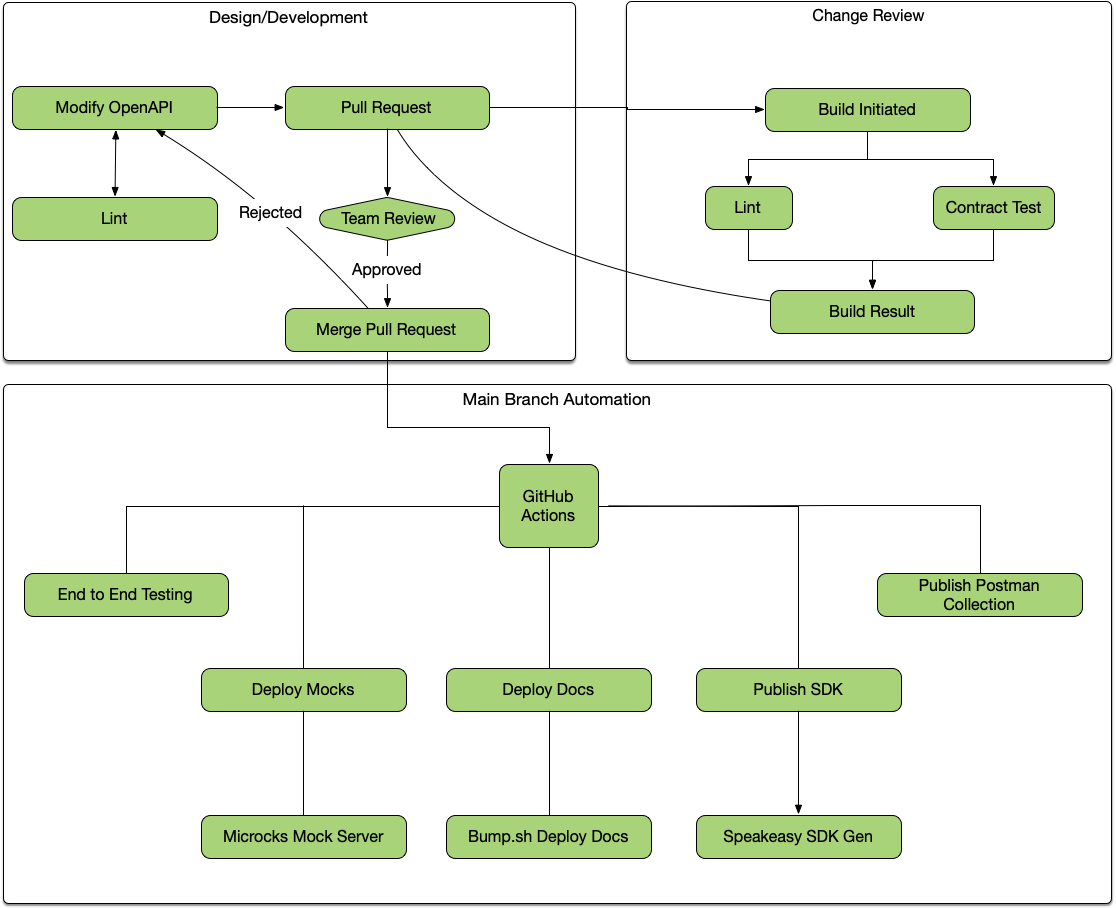

A Full Workflow with OpenAPI #

Lots of folks use little bits of OpenAPI tooling in various manual ways, but there is more to be done. Once OpenAPI is placed in version control, and tooling is triggered via continuous integration, a truly amazing and powerful workflow appears.

Here is the objectives for a truly useful OpenAPI workflow.

This felt like a dream for years, but you can do all of this right now, and it’s not all locked behind one massive expensive walled garden.

Git-centric Workflow #

The vast majority of software is run through some sort of version control, and this is the perfect place to put OpenAPI too: right in there with the source code. This means that any OpenAPI change can go through a review process, and once the actual API implementation has started being built it means the OpenAPI and the code should always match, allowing for linting and testing.

Once the changes are merged to the main branch, it means documentation, mock servers, SDKs, and anything else can all be updated along with the main deployment of the source code, so there is no divergence between the code and all these other artifacts.

Let’s take a look at each of these stages of the API lifecycle, and how OpenAPI tooling can help.

Phase 1: Design & Development #

Write OpenAPI #

Create OpenAPI with some sort of editor. There are a few graphical editors available which make getting started with OpenAPI considerably easier, but many of them assume you will design an API, then export it, then never go back to the OpenAPI to update it. They provide awkward importing through web interfaces, or complicated syncing, or throw a bunch of confusing paywalls up, so many people prefer to use their favorite editor.

VS Code is a popular choice, with the OpenAPI Editor extension by 42Crunch providing code navigation, linting, preview, IntelliSense, schema enforcement, and a handy snippets feature to avoid repeating things. It also has static and dynamic security analysis of the OpenAPI if you want to make sure you’re not making terrible mistakes early on.

API Linting #

Linting an OpenAPI document is like linting any other source code. Using OpenAPI-aware linters, syntax errors and semantic mistakes can be spotted, but more importantly it helps to make sure that the API is of good quality, and the OpenAPI that describes it is written properly, right from the start.

Linting can cover anything from enforcing naming conventions for endpoints or properties, outlawing the use of auto-incrementing IDs, picking a single versioning scheme across multiple APIs, improving documentation by making sure endpoints have descriptions, requiring a specific data format like JSON:API or HAL, requesting API designers stick to standards like RFC 9457: Problem Details for APIs, or anything else you can imagine a rule being created for.

Tools like vacuum power this concept, and can be run locally using a CLI, or in Visual Studio using vacuum-vscode.

Server-side Validation #

Once the API design has been approved and development begins on the API, the OpenAPI is already right there in the repository so why not use it to avoid writing out all the same validation rules as code?

Some people have experimented with generating whole codebases from OpenAPI. Maybe you’ll have success with that, but folks are often scared off by the confusion of trying to customize generated code before it is generated again with future changes. Some tools allow for “hook in” points that allow for customization without regenerating, but this can be feel restrictive.

A far more flexible approach comes with OpenAPI-aware HTTP middlewares. These middlewares are able to look into the OpenAPI document, and compare incoming HTTP requests based on the method and endpoint. From there it’s a simple case of rejecting the request if the URL parameters, query string parameters, or payload body do not match the expected contract defined in the OpenAPI document.

For example, APIs built with Rails can use the openapi_first gem to register a middleware, and point it to OpenAPI.

# config/application.rb

require_relative "boot"

require "rails/all"

module RailsDesignFirst
  class Application < Rails::Application
    config.middleware.use OpenapiFirst::Middlewares::RequestValidation, spec: 'api/openapi.yaml'
  end
end

From there, requests will be rejected if they are missing required properties or are otherwise invalid.

curl -X POST http://localhost:3000/widgets -H "Content-Type: application/json" -d '{}'

{
  "title": "Bad Request Body",
  "status": 400,
  "errors": [
    {
      "message": "object at root is missing required properties: name",
      "pointer": "",
      "code": "required"
    }
  ]
}

If we try with a valid request now the OpenAPI middleware should let the request through, and the API should respond with a success.

curl -X POST http://localhost:3000/widgets -H "Content-Type: application/json" -d '{"name":"Replicator"}'

{
  "id": 1,
  "name": "Replicator",
  "created_at": "2024-01-08T16:27:14.151Z",
  "updated_at": "2024-01-08T16:27:14.151Z"
}

Without needing to write any Ruby code at all, your API is rejecting invalid requests, which is not only saving time writing code, but is making sure the OpenAPI and code line up perfectly. It’s pretty hard for code and docs to drift when they’re sharing a single source of truth like this.

Learn more about using OpenAPI to simplify building Ruby on Rails APIs, with a similar guide for Laravel PHP users.

Phase 2: API Governance #

API Governance is the framework for making great, consistent, reliable, and consumable APIs. Over the last decade, API governance has gone from some vague concept being mentioned at conferences, to being a beautifully solved problem with a plethora of tooling.

Whilst API governance is a massive topic, a few key parts can be handled with OpenAPI tooling, speeding up and partially automating “API Design Reviews”, simplifying change detection, automation of “API style guides”, and creating an API Catalog that can help keep track of all the APIs in a company so they don’t go missing and fall into disrepair.

API Design Reviews #

Just as pull requests need to pass automated testing as well as being peer reviewed, OpenAPI changes need to be reviewed to make sure they are a good idea for the API, consumers, and organization at large. Design reviews make sure the API is going to be useful not just valid. By making sure the OpenAPI is suggesting a good change, more mistakes will be caught before they make it into production.

This can be a very manual and time consuming process without OpenAPI as there is a lot of code review, and the folks helping with design reviews might have to learn various languages, multiple frameworks, and understand all the intricacies of those frameworks less obvious conventions. Moving the review to OpenAPI removes all of that, and helps to democratize and centralize the process and have more folks involved, instead of just those who understand the code.

To design reviews easier, Bump.sh can show a list of relevant changes between the OpenAPI in the a pull request and the latest deployed document. This helps skip staring at infinite lines of YAML/JSON, trying to understand what, if anything, meaningfully changed. New properties, changed property validations, or breaking changes like a removed endpoint or new required property.

# .github/workflows/api-changes.yaml
name: API Changes
permissions:
  contents: read
  pull-requests: write

on:
  pull_request:
    branches:
      - main

jobs:
  changes:
    name: Detect and preview API changes
    runs-on: ubuntu-latest
    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Comment pull request with API diff
        uses: bump-sh/github-action@v1
        with:
          doc: <BUMP_DOC_ID>
          token: ${{secrets.BUMP_TOKEN}}
          file: api/openapi.yaml
          command: diff

API Linting Again #

Linting was used in the design and development phase, running locally in the CLI or editor, but linting is useful in the governance phase too. By running API linting on pull requests, much of the design review process can be automated.

For example, instead of wasting human time spotting naming convention issues, or making somebody want to quit because their entire job is reminding API developers “this endpoint does not have a description, please add one”, the robots can do that work instead.

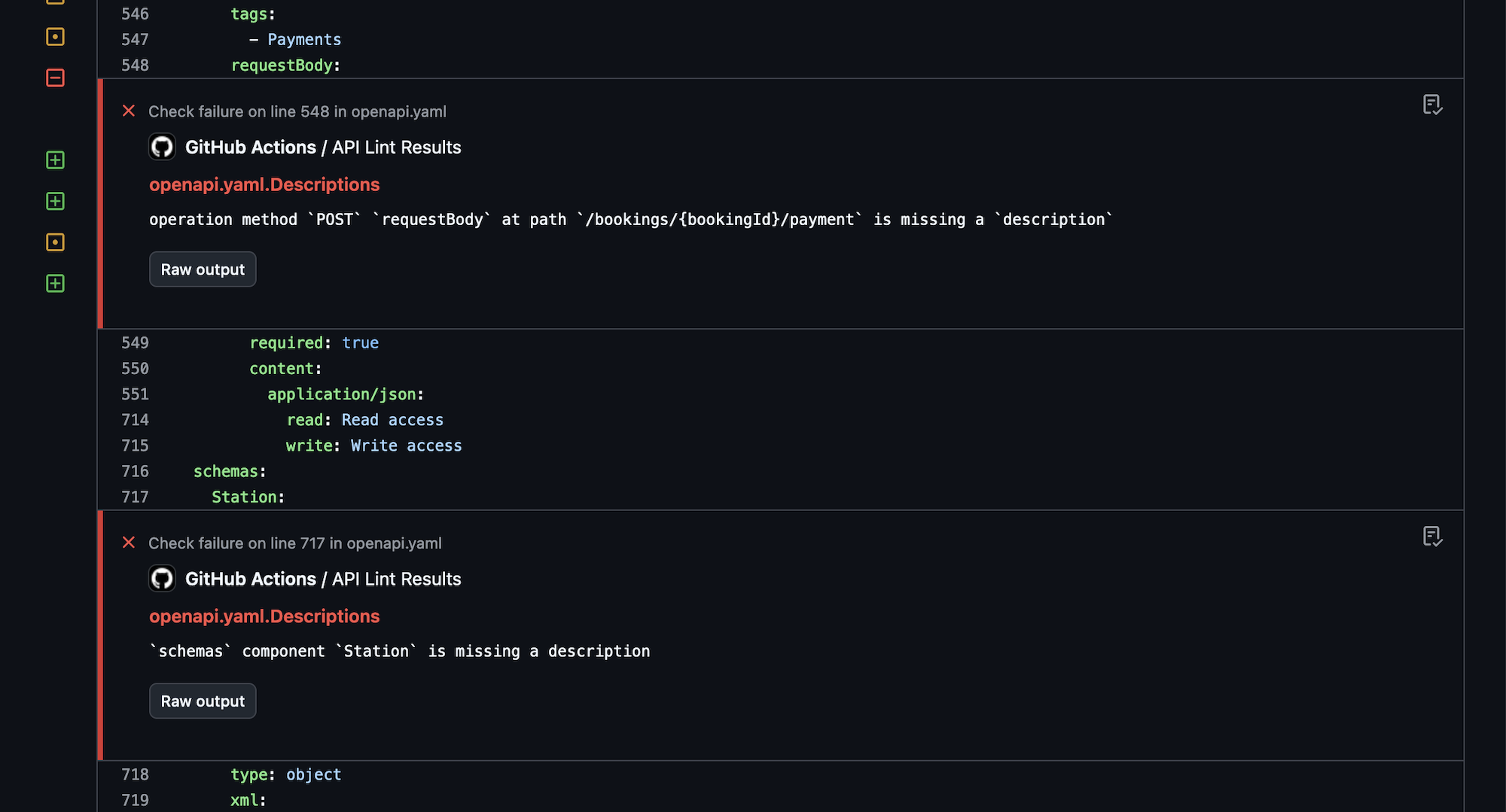

Configuring the linter to return errors and warnings as annotations on the problematic lines in a pull request makes it even easier, helping developers spot the problems with their OpenAPI as quickly as they would any syntax errors in their code.

Organizations can use this concept to produce their own rulesets, which are basically the old idea of an API Style Guide, but instead of writing out a manifesto which nobody will ever read, it can be an automated process. By adding new rules over time as more problems pop up or best practices evolve, it helps to iteratively improve not just the API in question, but all future and existing APIs in the organization.

Let’s combine this extra linting job with the previous API change workflow.

# .github/workflows/api-changes.yaml
name: API Changes
permissions:
  contents: read
  pull-requests: write

on:
  pull_request:
    branches: [main]
  push:
    branches: [main]
    paths-ignore:
      - 'README.md'
      - 'src/**'

jobs:
  changes:
    name: Detect and preview API changes
    runs-on: ubuntu-latest
    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Comment pull request with API diff
        uses: bump-sh/github-action@v1
        with:
          doc: <BUMP_DOC_ID>
          token: ${{secrets.BUMP_TOKEN}}
          file: api/openapi.yaml
          command: diff

  lint:
    name: API Linting
    runs-on: ubuntu-latest

    permissions:
      statuses: write
      checks: write

    steps:
      - name: Checkout code
        uses: actions/checkout@v4

      - name: Install dependencies
        run: npm ci

      - name: Lint API
        run: npm exec vacuum report -- --junit openapi.yaml lint-results

      - name: Publish Lint Results
        if: success() || failure()
        uses: mikepenz/action-junit-report@v5
        with:
          check_name: API Lint Results
          report_paths: lint-results-*.xml

Contract Testing #

Contract testing used to be complicated, with dedicated testing tools running in isolation that had no knowledge of what the contract was meant to be until you told it.

How would a testing tool know what properties were meant to be returned by any particular endpoint in any particular state until it had been programmed in? How would it be aware of changes made in a recent PR unless it was updated once it broke?

Having OpenAPI in the same repository as the source code means that every single commit carries with it a perfect description of what the API should be, so at any point the existing API test suite should be able to use that OpenAPI for comparison against what the code is actually returning.

For Rails users, this would take the form of the openapi_contracts gem. Once the RSpec test runner is aware of where the OpenAPI document resides, a single assertion can be added to existing tests to confirm the returned response matches the API description.

require "rails_helper"

RSpec.describe 'widgets', type: :request do

  describe "GET /widgets" do
    it 'responds with 200 and matches the doc' do
      get '/widgets'
      expect(response).to match_openapi_doc(OPENAPI_DOC)
    end
  end

end

Requests that were sent can also be validated to confirm both sides of the HTTP interaction.

it do
  is_expected.to match_openapi_doc(
	  OPENAPI_DOC,
	  request_body: true
  ).with_http_status(:created)
end

Running this contract testing is done whenever the existing integration test suite is run.

# .github/workflows/tests.yaml
name: Run RSpec tests
on: [push]
jobs:
  run-rspec-tests:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - name: Set up Ruby
        uses: ruby/setup-ruby@v1
        with:
          # runs 'bundle install' and caches installed gems automatically
          bundler-cache: true
      - name: Run tests
        run: |
          bundle exec rspec

For a more in depth example, see how to contract test in Rails, or see how to do the same with Laravel PHP. If you’d like to see a similar guide for your favorite language/framework please get in touch.

If an API does not have an existing integration test suite this might seem like a bigger push, but an API without a test suite should absolutely add one. Working with a generic test suite and adding in some OpenAPI assertions can be a great way to start off a larger test suite. Set up one HTTP request for each API endpoint, with basic information, and add other tests for various scenarios over time as bugs are squashed.

Another option to avoid that is to run contract testing outside of the codebase. To avoid having to train a tool to know what the expected contract is, why not use a tool which already knows what the latest OpenAPI is meant to be at anytime: Microcks again!

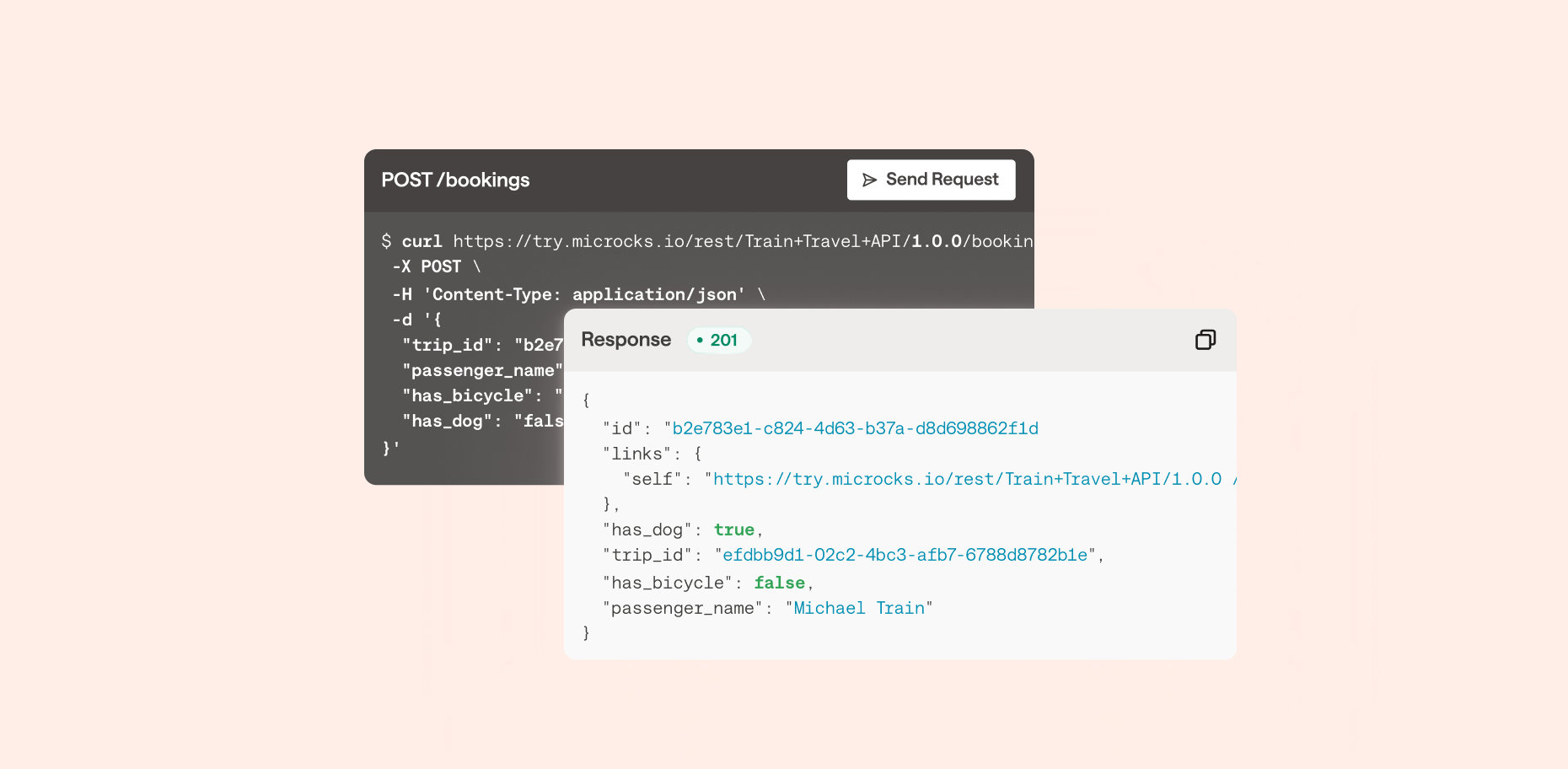

Microcks handles contract testing as well as mock servers, and it does this by taking a URL to a server for comparison. This could be staging, pre-production, or even production if you’re careful.

It works by going through all the operations in the OpenAPI document, and uses the examples and schemas defined there to send a request that should work, to an API instance of your choosing. This could be production if you are brave, or some other staging/testing environment, but the logic is simple:

  1. Send HTTP requests.
  2. See if that fails unexpectedly.
  3. Receive HTTP response.
  4. See if that matches the OpenAPI document.

This could be automated to run at regular intervals, or it could be triggered to run on pull requests and merges to make sure that any and all API or OpenAPI changes agree with each other. GitHub Actions is once again a good way to get this done.
